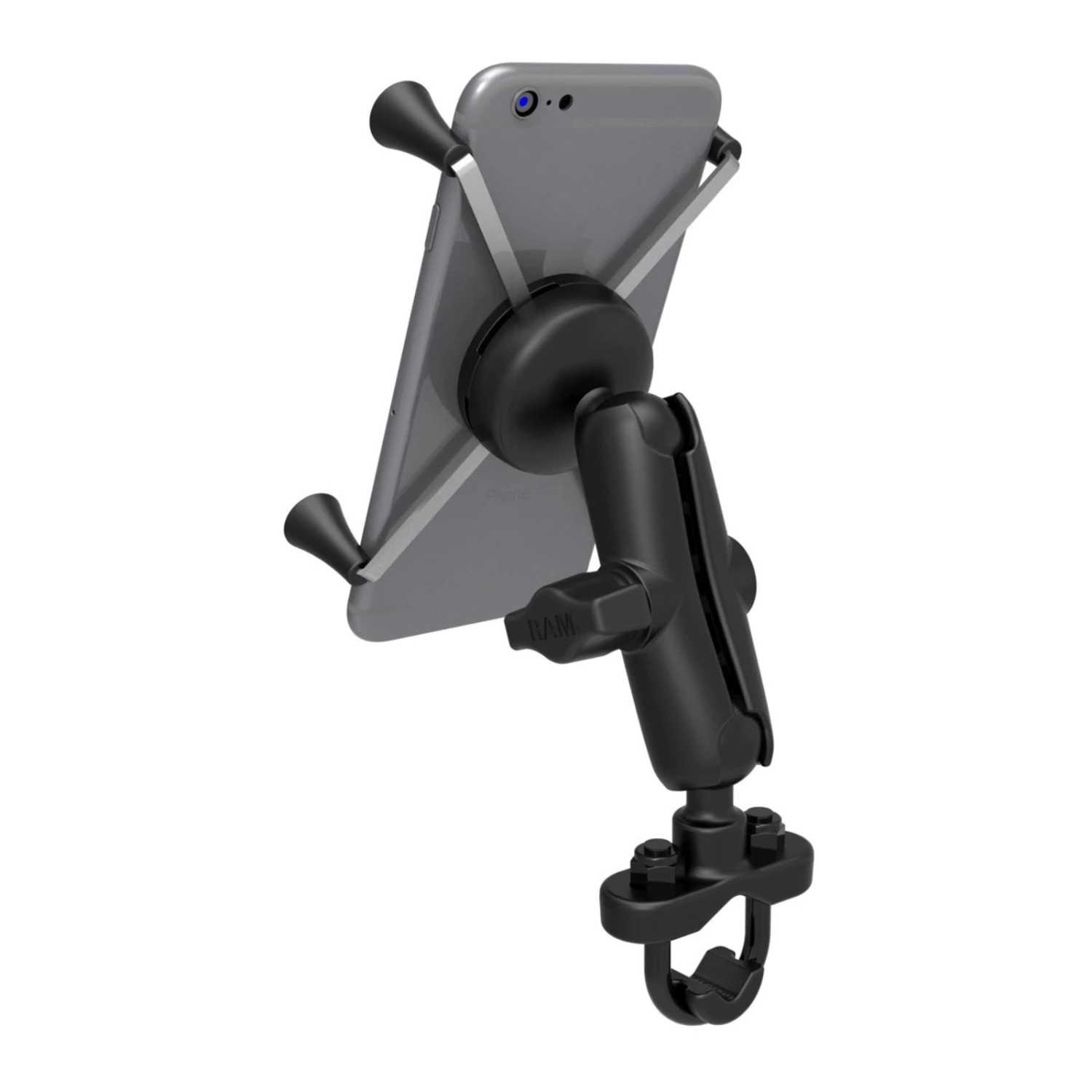

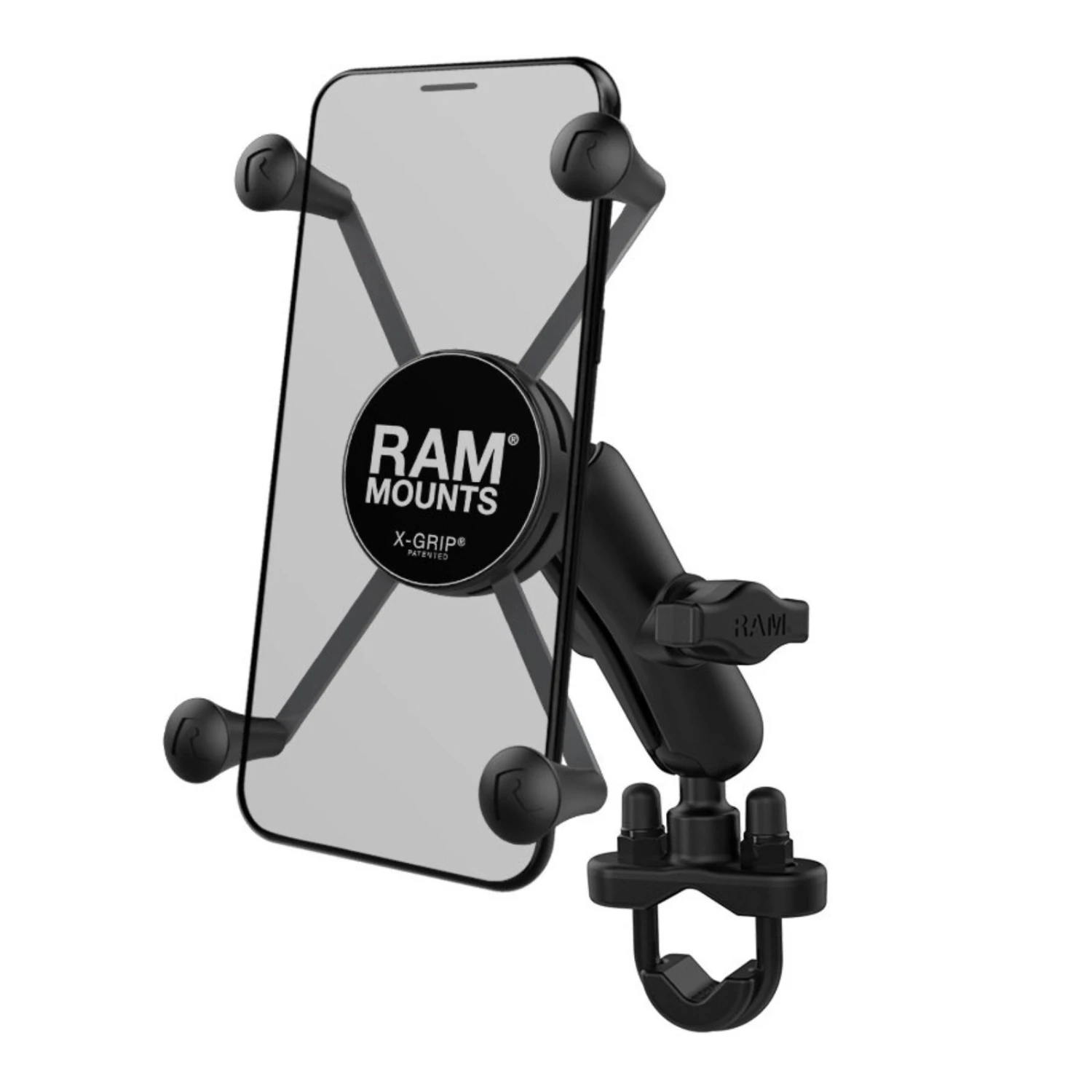

RAM MOUNTS Ram Motorcycle X-Grip Large Phone Mount With Handlebar U-Bolt Base

Ideal for handlebars, the RAM-B-149Z-UN10U consists of a zinc-coated U-bolt base, medium length double socket arm, and the popular spring-loaded RAM^® X-Grip^® large phone holder.

In addition, hardware is included to accommodate rails from 0.5″ – 1.25″ in diameter. The RAM^® X-Grip^® features an ‘X’ design that expands and contracts to provide a perfect fit for your device – even if it’s in a case. Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite, this large version of the RAM^® X-Grip^® fits phones ranging from 1.75″ to 4.5″ in width and keeps your device completely functional and accessible. RAM^® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM^® X-Grip^® includes a device tether that is recommended for added security and peace of mind.

FEATURES:

• Spring-loaded ‘X’ design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
• Includes a U-bolt base that accommodates rails from 0.5″ to 1.25″ in diameter and a medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments

SPECS:

• CLAMP RANGE: 0.5″ (12.7mm) – 1.25″ (31.7mm) diameter
• HOLDER DIMENSIONS: Width Range: 1.75″ (44.4mm) – 4.5″(114.3mm), Depth Range: 0.875″ (22.2mm) max
• SOCKET-TO-SOCKET LENGTH: 3″ (76.2mm)
• BALL SIZE: B Size (1″, 25.4mm)

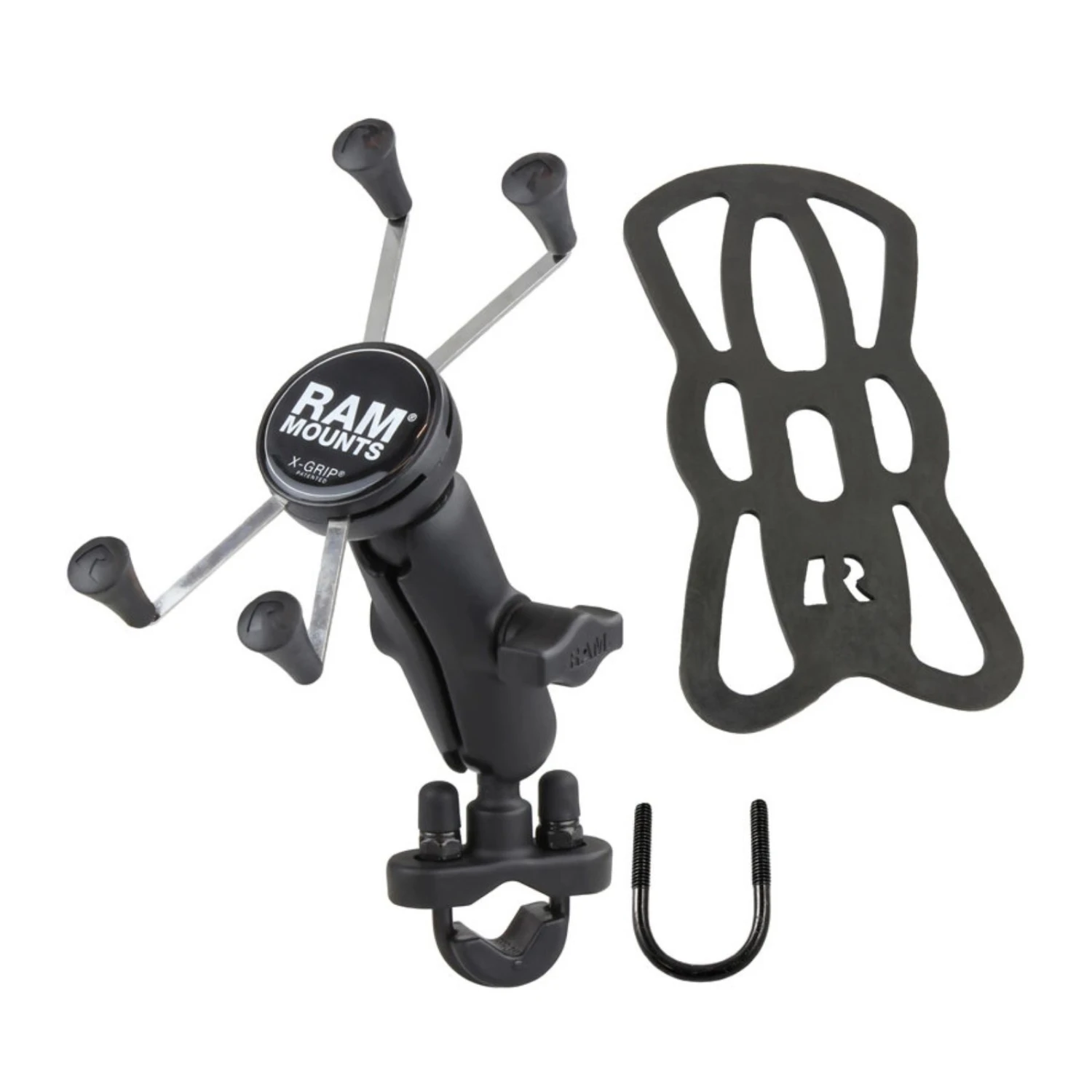

KIT INCLUDES:

• x1 Optional Tether
• x1 Glue Tube for Rubber Caps
• x1 1/4″-20 U-Bolt for .5″ – 1″ Rails
• x1 1/4″-20 U-Bolt for 1″ – 1.25″ Rails
• x2 1/4″-20 Nylock Nuts
• x2 Rubber Caps
• x1 U-Bolt Spacer
